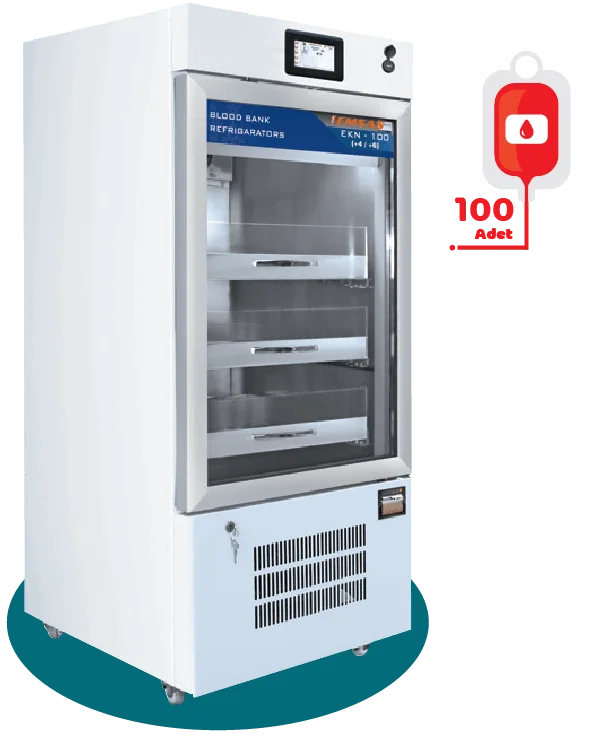

Blood Bank Refrigerators ( +4°C | +6°C )

EKN 100

OPTIONAL

CIRCULAR PRINTER

OPTIONAL

THERMAL PRINTER

OPTIONAL

BLOCK 3 FLOOR GLASS DOOR

  • The outer surface of the cabinet is made of corrosion-resistant electrostatic painted galvanised sheet and the inner surface is made of stainless sheet material.
  • The cabinet operates with mains voltage of 195-230 V/50 Hz.
  • The cabinet door is double glazed, lockable and magnetic sealed. In this way, it allows stock tracking.
  • Each shelf in the cabinet holds 25, 50, 100, 200, 300 and 600 450 ml bags of whole blood, depending on the capacity of the cabinet.
  • The cabinet has a pool type stainless steel shelf system. There is a plexiglass protector in front of each shelf. This movable shelf system has easy pull-out feature. There are in-drawer separators that help blood bags to be easily placed and stocked.
  • The cabinet operates in the range of +2/+8 °C, which is the storage temperature of blood components, and is set to +4 °C.
  • Equal heat distribution is provided by the reinforced fan system inside the cabinet.
  • The cabinet operates quietly and smoothly so as not to cause separation of blood components.
  • There is a fully automatic defrosting system to maintain the efficiency of the cabinet cooling evaporator.
  • Cabinet cabinet lighting is provided with LED system.
  • User friendly microprocessor digital control panel is used on the cabinet. This system can store data in its memory for 30 days. Password protection system prevents unauthorised access.
  • There is a USB output on the device. The user can save the cabinet degrees to an external flash memory for 10 years via USB and transfer these data to the PC in excel format.
  • The thermostat on the cabinet control panel can measure with an accuracy of 0.1 degree.
  • There are 2 probes in the blood cabinet. One of the probes measures the temperature inside the cabinet and the other measures the temperature of the sample liquid in the blood density. This information is monitored on the digital screen.
  • The device control panel is equipped with an automatically recharged accumulator system. This system ensures that the digital con troll panel and thermal printer continue to operate for 24 hours in case of possible power outages.
  • When the upper and lower temperature limits are exceeded during the operation of the cabinet, when the door of the device is open, when there is a power failure or low voltage problem, the device warns with a visual and audible warning signal.
  • The cooling system and the insulation system of the cabinet do not contain CFC gases harmful to the ozone layer.
  • There are two stoppered and two fixed castors on the cabinet for easy mobility.
  • Thermal printer or circular printer can be added to our cabinets upon user request. Numerical transcripts of the data stored in the thermal printer can be taken.
  • On the cabinet, there is an external prop input place for connection to the temperature monitoring system.
  • An encrypted touch screen is used on the cabinet that prevents unauthorised persons from entering the system
  • All medical devices manufactured by Emsaş A.Ş. are guaranteed for 2 years.
  • All our products are manufactured in accordance with ISO 9001:2008, ISO 13485 TSE service place qualification requirements. The cabinet has CE certificate and barcode.
  • Temperature - time graph up to the last 140 minutes can be seen on the touch screen of the device.
  • With the Multi air flow system, the temperature distribution between the shelves in the cabin is equal.
