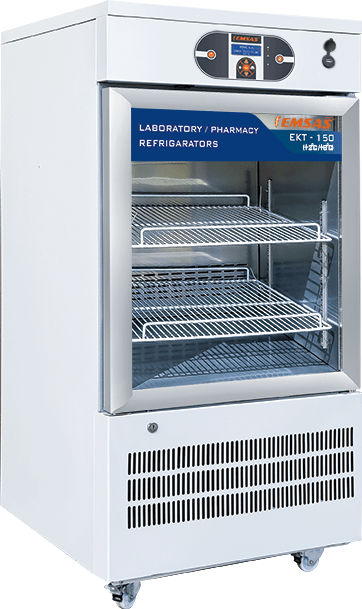

KIT SERUM | VACCINE | MEDICINE STORAGE COOLER (2/8) (0°C | +15°C)
EKT 150
OPTIONAL
CIRCULAR PRINTER
OPTIONAL
THERMAL PRINTER
OPTIONAL
touch screen
OPTIONAL
VACCINE TRACKING SYSTEM
OPTIONAL
BLOCK DOOR
OPTIONAL
CHROME RAF
Technicial Specifications | |
Operating Range | 0 / +15 °C |
Set Temperature | +4°C |
External Dimensions (W*d*h) mm | 765*823*900 |
Internal Dimensions – Net (W*d*h) mm | 660*360*622 |
Internal Dimensions – Gross (W*d*h) mm | 660*462*622 |
Volume | 190 L |
Polyurethane Thickness | 50 mm |
Package Size | 765x825x870 mm |
Gross weight | 107 Kg |
Interior Lighting | Was |
Door lock | Was |
Alarm | Was |
Inner Body | Stainless Steel Cr-Ni 304 |
Outer Body | Electrostatic Powder Coated Galvanized |
Heating/Cooling System | Fan Blown |
Insulation | CFC-Free Polyurethane |
Number of Shelves | 2 Pieces |
Chrome Raf | optional |
Thermal Printer | optional |
Basket | optional |
SMS and Email Module | optional |
Computer Connection | USB |
Wheel | 2 Stops, 2 Without Stops |
Temperature Sensor | NTC |
Control System | Microprocessor Controlled |
Voltage Values | 220v-50hz |
Refrigerant (If Available) | R134a |
Strength | 230 Watt |
Natural gas | Optional / R290 |
- The outer surface of the cabinet is made of corrosion-resistant electrostatic painted galvanised sheet and the inner surface is made of stainless sheet material.
- The cabinet operates with mains voltage of 195-230 V/50 Hz.
- The cabinet door is double glazed, lockable and magnetic sealed. In this way, it allows stock tracking.
- There is a plastic coated wire shelf in the cabinet that can be adjusted according to user request.
- The cabinet operates in +0/+15 °C range and is set to +4 °C.
- Equal heat distribution is provided by the reinforced fan system inside the cabinet.
- The cabinet operates silently and smoothly.
- There is a fully automatic defrosting system to maintain the efficiency of the cabinet cooling evaporator.
- Cabinet lighting is provided with LED system.
- User friendly microprocessor digital control panel is used on the cabinet. This system can store data in its memory for 30 days. Password protection system prevents unauthorised access.
- The thermostat on the cabinet control panel can measure with an accuracy of 0.1 degree.
- The device control panel is equipped with an automatically recharged accumulator system. This system ensures that the digital control panel continues to operate for 24 hours in case of possible power outages.
- When the upper and lower temperature limits are exceeded during the operation of the cabinet, when the door of the device is open, when there is a power failure or low voltage problem, the device warns with a visual and audible warning signal.
- The cooling system and the insulation system of the cabinet do not contain CFC gases harmful to the ozone layer.
- There are two stoppered and two fixed castors on the cabinet for easy mobility.
- Our cabinets can be connected to the heat monitoring system.
- All medical devices manufactured by Emsaş A.Ş. are guaranteed for 2 years.
- All our products are manufactured in accordance with ISO 9001:2008, ISO 13485 TSE service place qualification requirements.
- The cabinet has a CE certificate and barcode.
